Product execution standards
| Product Specifications | Design Specifications | Structural length | Connecting flange | Test and inspection | Pressure to temperature | Product logo | |||||||||||
| GB/T12234 | GB/T12221 | GB/T9124.1 | GB/T26480 | GB/T12224 | GB/T12220 | ||||||||||||
Product Performance Specifications
1. Experimental pressure (unit: mm)
| Nominal pressure PN(MPa) |
case | Test pressure (MPa) | Top seal | |
| Sealing (liquid) | Sealed (gas) | |||
| 1.6 | 2.4 | 1.8 | 0.6 | 1.8 |
| 2.5 | 3.8 | 2.8 | 0.6 | 2.8 |
| 4.0 | 6.0 | 4.4 | 0.6 | 4.4 |
| 6.4 | 9.6 | 7.0 | 0.6 | 7.0 |
| 10.0 | 15.0 | 11.0 | 0.6 | 11.0 |
| 16.0 | 24.0 | 18.0 | 0.6 | 18.0 |
2. Applicable medium and applicable temperature
| Housing material | Applicable media | Applicable temperature (℃) |
| Carbon steel (type C) | Water, steam, oil products | ≤425 |
| Chromium Ni-TiTi Steel (P-type) | Nitrate | ≤200 |
| Chromium nickel molybdenum titanium steel (R type) | Acetate | ≤200 |
| Chrome molybdenum steel (type I) | Water, steam, oil products | ≤550 |
Main parts materials
| Valve Body/Valve Cover | Valve plate/valve seat | Valve rod | Stem nut | filler | Handwheel | ||||||||||||
| Carbon steel | High-quality carbon steel + cemented carbide or stainless steel | Chrome stainless steel | Aluminum bronze, ductile iron | Graphite asbestos disc root | Forged cast iron | ||||||||||||
| Chromium Ni-TiTi Steel | Stainless steel, stainless steel + cemented carbide | chromium nickel titanium stainless steel | Aluminum bronze, ductile iron | Immerse PTFE | Forged cast iron | ||||||||||||
| chromium nickel copper titanium steel | Stainless steel, stainless steel + cemented carbide | chromium nickel molybdenum titanium stainless steel | Aluminum bronze, ductile iron | Asbestos olefin | Forged cast iron | ||||||||||||
| Chrome molybdenum steel | Alloy steel + Xinjiang alloy | Chromium molybdenum vanadium steel | Aluminum bronze, ductile iron | Flexible graphite | Forged cast iron | ||||||||||||

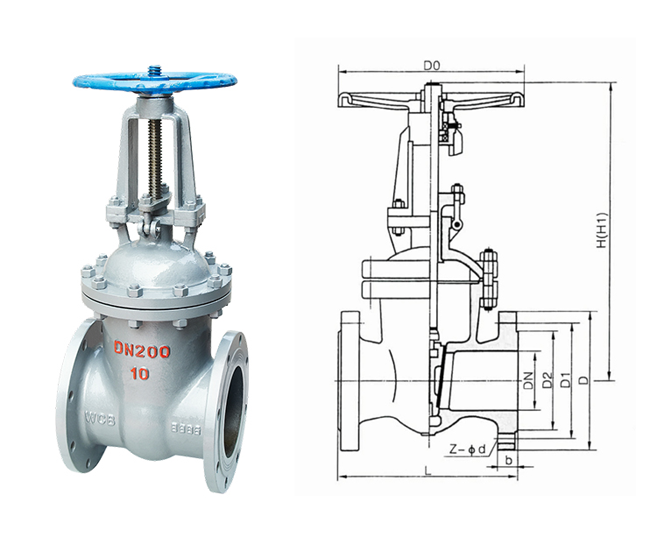

Main shape and connection size
| DN | L | D | D1 | D2 | b | f | Z-d | H | H1 | D0 | ||||||||
| Z40H Z41Y |
-16 | Z40H Z41Y |
-16 | Z40 Z41 |
Y-16R | Z40 Z41 |
W-16P | Z40 Z41 |
W-16R | Z40 Z41 |
Y-161 (KZ41Y) | |||||||
| 15 | 130 | 95 | 65 | 46 | 14 | 2 | 4-14 | 220 | 240 | 120 | ||||||||
| 20 | 150 | 105 | 75 | 56 | 16 | 2 | 4-14 | 255 | 284 | 140 | ||||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 2 | 4-14 | 275 | 303 | 160 | ||||||||
| 32 | 180 | 140 | 100 | 76 | 18 | 2 | 4-18 | 280 | 321 | 180 | ||||||||
| 40 | 200 | 150 | 110 | 84 | 18 | 2 | 4-18 | 300 | 352 | 200 | ||||||||
| 50 | 250 | 165 | 125 | 99 | 20 | 2 | 4-18 | 358 | 438 | 240 | ||||||||
| 65 | 270 | 185 | 145 | 118 | 20 | 2 | 4-18 | 375 | 450 | 240 | ||||||||
| 80 | 280 | 200 | 160 | 132 | 20 | 2 | 8-18 | 438 | 528 | 280 | ||||||||
| 100 | 300 | 220 | 180 | 156 | twenty two | 2 | 8-18 | 502 | 620 | 320 | ||||||||
| 125 | 325 | 250 | 210 | 184 | twenty two | 2 | 8-18 | 612 | 753 | 360 | ||||||||
| 150 | 350 | 285 | 240 | 211 | twenty four | 2 | 8-23 | 676 | 847 | 360 | ||||||||
| 200 | 400 | 340 | 295 | 266 | twenty four | 2 | 12-22 | 820 | 1039 | 400 | ||||||||
| 250 | 450 | 405 | 355 | 319 | 26 | 2 | 12-26 | 969 | 1245 | 450 | ||||||||
| 300 | 500 | 460 | 410 | 370 | 28 | 2 | 12-26 | 1142 | 1472 | 560 | ||||||||
| 350 | 550 | 520 | 470 | 429 | 30 | 2 | 16-26 | 1280 | 1450 | 640 | ||||||||
| 400 | 600 | 580 | 525 | 480 | 32 | 2 | 16-30 | 1452 | 1887 | 640 | ||||||||
| 450 | 650 | 640 | 585 | 548 | 40 | 2 | 20-30 | 1541 | 2011 | 720 | ||||||||
| 500 | 700 | 715 | 650 | 609 | 44 | 2 | 20-33 | 1676 | 2181 | 720 | ||||||||
| 600 | 800 | 840 | 770 | 720 | 48 | 2 | 20-36 | 1874 | 2346 | 800 | ||||||||
| Z40H Z41Y |
-25 | Z40H Z41Y |
-25P | Z40 Z41 |
Y-25R | Z40 Z41 |
W-25P | Z40 Z41 |
W-25R | Z40 Z41 |
Y-251 (KZ41Y) | |||||||
| 15 | 130 | 95 | 65 | 46 | 14 | 2 | 4-14 | 220 | 240 | 120 | ||||||||
| 20 | 150 | 105 | 75 | 56 | 16 | 2 | 4-14 | 255 | 284 | 140 | ||||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 2 | 4-14 | 275 | 303 | 160 | ||||||||
| 32 | 180 | 140 | 100 | 76 | 18 | 2 | 4-18 | 280 | 321 | 180 | ||||||||
| 40 | 200 | 150 | 110 | 84 | 18 | 2 | 4-18 | 300 | 352 | 200 | ||||||||
| 50 | 250 | 165 | 125 | 99 | 20 | 2 | 4-18 | 358 | 438 | 240 | ||||||||
| 65 | 270 | 185 | 145 | 118 | twenty two | 2 | 8-18 | 375 | 450 | 240 | ||||||||
| 85 | 280 | 200 | 160 | 132 | twenty four | 2 | 8-18 | 433 | 528 | 280 | ||||||||
| 100 | 300 | 235 | 190 | 156 | twenty four | 2 | 8-22 | 502 | 620 | 320 | ||||||||
| 125 | 325 | 270 | 220 | 184 | 26 | 2 | 8-26 | 612 | 753 | 360 | ||||||||
| 150 | 350 | 300 | 250 | 211 | 28 | 2 | 8-26 | 676 | 847 | 360 | ||||||||
| 200 | 400 | 360 | 310 | 274 | 30 | 2 | 12-26 | 820 | 1039 | 400 | ||||||||
| 250 | 450 | 425 | 370 | 330 | 32 | 2 | 12-30 | 696 | 1245 | 450 | ||||||||
| 300 | 500 | 485 | 430 | 389 | 34 | 2 | 16-30 | 1142 | 1472 | 560 | ||||||||
| 350 | 550 | 555 | 490 | 448 | 38 | 2 | 16-33 | 1280 | 1450 | 640 | ||||||||
| 400 | 600 | 620 | 550 | 503 | 40 | 2 | 16-36 | 1452 | 1887 | 640 | ||||||||
| 450 | 650 | 670 | 600 | 548 | 46 | 2 | 20-36 | 1541 | 2011 | 720 | ||||||||
| 500 | 700 | 730 | 660 | 609 | 48 | 2 | 20-36 | 1676 | 2181 | 720 | ||||||||
| 600 | 800 | 845 | 770 | 720 | 48 | 2 | 20-39 | 1874 | 2346 | 800 | ||||||||
Note: Product information is for reference only. If you have any questions, please contact our company!
