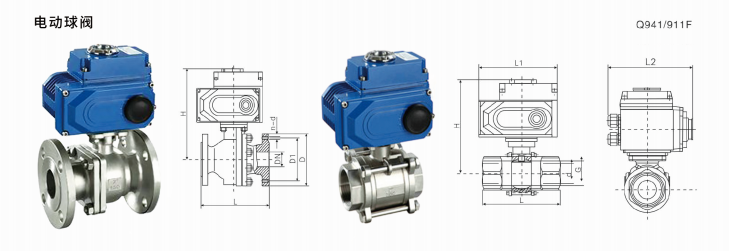

Adjust the electric ball valve Main shape and connection size
| Nominal path DN |
Dimensions (mm) | |||||
| G | d | L | H | L1 | L2 | |
| 6~8 | 1/4 | 11.6 | 72 | 227 | 161 | 140 |
| 10 | 3/8 | 12.7 | 72 | 227 | 161 | 140 |
| 15 | 1/2 | 15 | 72 | 227 | 161 | 140 |
| 20 | 3/4 | 20 | 80 | 236 | 161 | 140 |
| 25 | 1 | 25 | 86 | 244 | 161 | 140 |
| 32 | 1-1/4 | 32 | 100 | 260 | 189 | 165 |
| 40 | 1-1/2 | 38 | 110 | 280 | 189 | 165 |
| 50 | 2 | 50 | 130 | 290 | 189 | 165 |
| 65 | 2-1/2 | 64 | 160 | 223 | 189 | 165 |
| 80 | 3 | 78 | 191 | 234 | 189 | 268 |
| 100 | 4 | 98 | 255 | 245 | 266 | 268 |
Main performance parameters
| operate Way |
Electric open type | The valve is closed and powered on |
| Electric shutdown type | The valve is in the open state and the power is turned off | |
| Applicable media | All kinds of liquids, gases, oils, etc. | |
| Connection method | Flange, internal thread, external thread, welding, clamp | |
| Nominal path | DN6~DN100 | |
| Pressure range | 0~420bar | |
| Use voltage | AC220V, AC 380V, can also be customized as required | |
| Input and output signals | 4~20mA, 1~5V, 0~10V, can also be customized as required | |
| Material | Actuator | Refined aluminum alloy with anodization treatment |
| Valve body | 304, 316, 316L, can also be customized as required | |
| Sphere | Stainless steel, Hastelloy | |
| seal | PTFE, PPL, hard seal | |
| Valve core | Stainless steel, Hastelloy | |
| Ambient temperature | ≤60℃ | |
| Protection level | IP67 | |
Main shape and connection size of flange electric ball valve (unit: mm)
| Nominal Passage DN |
Dimensions (mm) | ||||||||||||||
| 1.6Mpa | 2.5Mpa | 4.0Mpa | |||||||||||||
| L | D | D1 | H | n-d | L | D | D1 | H | n-d | L | D | D1 | H | n-d | |
| 15 | 130 | 95 | 65 | 176 | 4-14 | 130 | 95 | 65 | 176 | 4-14 | 130 | 95 | 65 | 176 | 4-14 |
| 20 | 140 | 105 | 75 | 180 | 4-14 | 140 | 105 | 75 | 180 | 4-14 | 140 | 105 | 75 | 180 | 4-14 |
| 25 | 150 | 115 | 85 | 182 | 4-14 | 150 | 115 | 85 | 182 | 4-14 | 150 | 115 | 85 | 182 | 4-14 |
| 32 | 165 | 135 | 100 | 188 | 4-18 | 165 | 135 | 100 | 188 | 4-18 | 180 | 135 | 100 | 188 | 4-18 |
| 40 | 180 | 145 | 110 | 198 | 4-18 | 180 | 145 | 110 | 198 | 4-18 | 200 | 145 | 110 | 198 | 4-18 |
| 50 | 200 | 160 | 125 | 203 | 4-18 | 200 | 160 | 125 | 203 | 4-18 | 220 | 160 | 125 | 203 | 4-18 |
| 65 | 220 | 180 | 145 | 222 | 4-18 | 220 | 180 | 145 | 222 | 8-18 | 250 | 180 | 145 | 222 | 8-18 |
| 80 | 250 | 195 | 160 | 237 | 8-18 | 250 | 195 | 160 | 237 | 8-18 | 280 | 195 | 160 | 237 | 8-18 |
| 100 | 280 | 215 | 180 | 281 | 8-18 | 280 | 230 | 190 | 281 | 8-23 | 320 | 230 | 190 | 281 | 8-23 |
| 125 | 320 | 245 | 210 | 300 | 8-18 | 320 | 270 | 220 | 300 | 8-25 | 400 | 270 | 220 | 300 | 8-25 |
| 150 | 360 | 280 | 240 | 300 | 8-23 | 360 | 300 | 250 | 300 | 8-25 | 400 | 300 | 250 | 300 | 8-25 |
| 200 | 400 | 335 | 295 | 368 | 12-23 | 400 | 360 | 310 | 368 | 12-25 | 502 | 375 | 320 | 368 | 12-30 |
Note: Product information is for reference only. If you have any questions, please contact our company!
