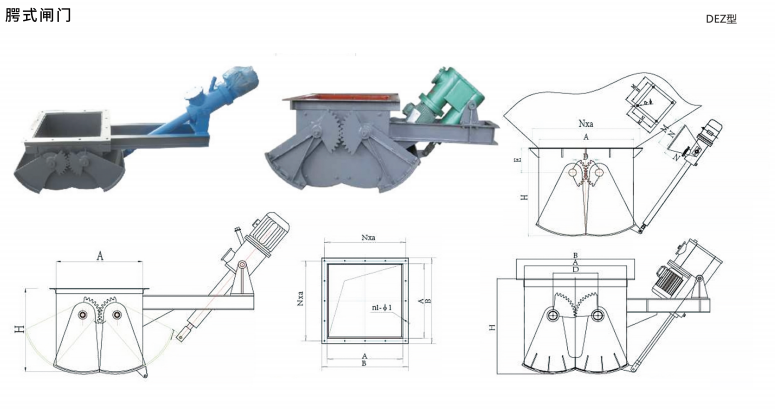

Main shape connection dimensions (unit: mm)
| model | Main dimensions (mm) | Electro-hydraulic push rod model | Power (kW) | |||||||||
| A | B | D | E | H | M | N | Nxa | n1×φ1 | n – Medium | |||
| DEZ-30 | 300 | 400 | 160 | 100 | 300 | 320 | 260 | 2×180 | 8-14 | 4-24 | DYT700-180 | 1.1 |
| DEZ-40 | 400 | 500 | 160 | 120 | 360 | 2×230 | DYT700-240 | |||||
| DEZ-50 | 500 | 626 | 240 | 150 | 480 | 3×190 | 12-18 | DYT1000-290 | 1.5 | |||
| DEZ-60 | 600 | 726 | 240 | 180 | 600 | 3×224 | DYT1000-340 | |||||
| DEZ-70 | 700 | 850 | 240 | 220 | 660 | 4×198 | 16-22 | DYT1750-390 | 2.2 | |||
| DEZ-80 | 800 | 950 | 240 | 240 | 760 | 4×222 | DYT1750-440 | |||||
| DEZ-90 | 900 | 1080 | 280 | 260 | 900 | 5×198 | 20-22 | DYT 2500-490 | 3 | |||
| DEZ-100 | 1000 | 1160 | 280 | 280 | 950 | 5×214 | 20-22 | DYT2500-550 | 3 | |||
| DEZ-120 | 1200 | 1500 | 280 | 280 | 1250 | 6×225 | 24-26 | DYT 4000-680 | 4 | |||
Note: Product information is for reference only. If you have any questions, please contact our company!
