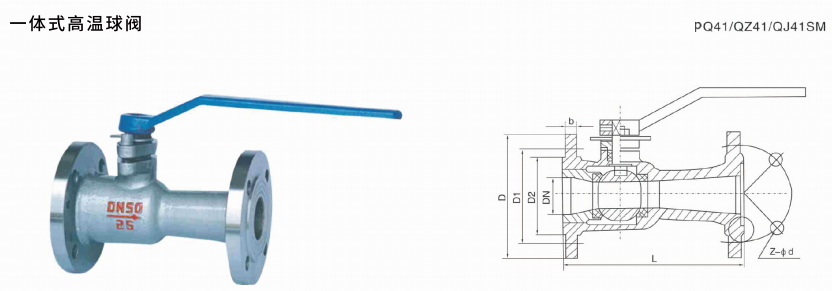

Connection Dimension Table Replacement Gate Valve (PN10-40)
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 200 | 250 | 265 | 280 | 300 | 325 | 350 | 400 |
| D | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 |
| D1 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| D2 | 85 | 100 | 120 | 135 | 155 | 185 | 210 | 265 |
| b | 18 | 20 | 20 | twenty two | twenty four | 26 | 28 | 30 |
| Z-od | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-23 | 12-23 |
Connection dimension table replacement shut-off valve (PN10-40 unit: mm)
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| L | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 |
| D | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 |
| D1 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| D2 | 85 | 100 | 120 | 135 | 155 | 185 | 210 | 265 |
| b | 18 | 20 | 20 | twenty two | twenty four | 26 | 28 | 30 |
| Z-od | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-23 | 12-23 |
Note: Product information is for reference only. If you have any questions, please contact our company!
