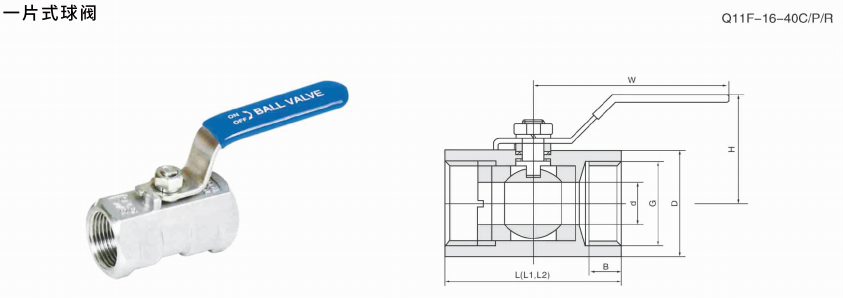

Main shape and connection dimensions (unit: mm)
| Nominal path DN |
PN1.6/2.5/4.0MPa, Class 150Lb/Class 300Lb | |||||||
| L1 | L2 | d | G | D | B | H | W | |
| 6 | one | one | 8 | 1/4″ | 30 | 11.5 | 56 | 110 |
| 10 | one | one | 10 | 3/8″ | 31 | 11.5 | 58 | 110 |
| 15 | 52 | 55 | 10 | 1/2″ | 32 | 14 | 58 | 110 |
| 20 | 56 | 60 | 13.5 | 3/4″ | 38 | 15 | 62 | 110 |
| 25 | 67 | 72 | 18 | 1″ | 45 | 15 | 68 | 110 |
| 32 | 74 | 77 | twenty two | 1’/4″ | 54 | 18 | 75 | 150 |
| 40 | 81 | 88 | 26 | 1’/2″ | 63 | 19 | 83 | 150 |
| 50 | 93 | 100 | 32.8 | 2″ | 73 | 19 | 90 | 180 |
Note: Product information is for reference only. If you have any questions, please contact our company!
