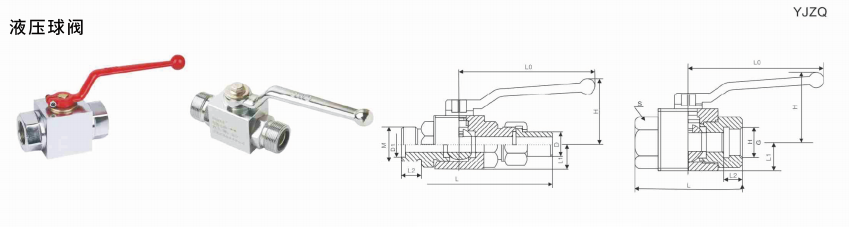

External thread connection size J31.5MPa
| model | M | D | D1 | L1 | L2 | L0 | H | |
| YJZQ-J10W | 24×1.5 | 18 | 154 | 20 | 19 | 16 | 160 | 58 |
| YJZQ-J15W | 30×1.5 | twenty two | 166 | twenty two | twenty two | 18 | 160 | 68 |
| YJZQ-J20W | 36×2 | 28 | 174 | 28 | twenty three | 18 | 160 | 72 |
| YJZQ-J25W | 42×2 | 34 | 212 | 35 | 26 | 20 | 200 | 86 |
| YJZQ-J32W | 52×2 | 42 | 230 | 40 | 33 | twenty two | 230 | 103 |
| YJZQ-H40W | 64×2 | 50 | 250 | 50 | 43 | twenty four | 260 | 20 |
| YJZQ-H50W | 72×2 | 64 | 294 | 60 | 43 | 26 | 280 | 28 |
Internal thread connection size J31.5MPa
| model | M | G | L1 | L2 | S | H | L0 | |
| YJZQ-J10N | 18×1.5 | 3/8″ | 78 | 19 | 14 | 27 | 50 | 160 |
| YJZQ-J15N | 22×1.5 | 1/2″ | 86 | twenty two | 16 | 30 | 55 | 160 |
| YJZQ-J20N | 27×2 | 3/4″ | 108 | twenty three | 18 | 41 | 60 | 160 |
| YJZQ-J25N | 33×2 | 1″ | 116 | 26 | 20 | 50 | 60 | 200 |
| YJZQ-J32N | 42×2 | 1/4″ | 136 | 33 | twenty two | 60 | 74 | 230 |
| YJZQ-J40N | 48×2 | 1/2″ | 148 | 43 | twenty four | 75 | 88 | 260 |
| YJZQ-J50N | 64×2 | 2″ | 180 | 53 | 26 | 85 | 125 | 280 |
Note: Product information is for reference only. If you have any questions, please contact our company!
