Main technical parameters
| DN | 50~2000 | |||
| Nominal pressure | PN(MPa) | 0.05 | 0.25 | 0.6 |
| Test pressure | Strength experiment | 0.075 | 0.375 | 0.9 |
| Sealing experiment | ≤1.5% leakage | |||
| Applicable media | Coal gas, dust-containing gas, flue gas, etc. | |||
| Driver form | Manual, worm and worm gear transmission, gas transmission, electric transmission | |||
Applicable media
| Applicable temperature | Applicable media |
| Carbon steel ≤400℃ | High temperature flue gas, raw flue gas, clean flue gas |
| 310SS≤1000℃ |

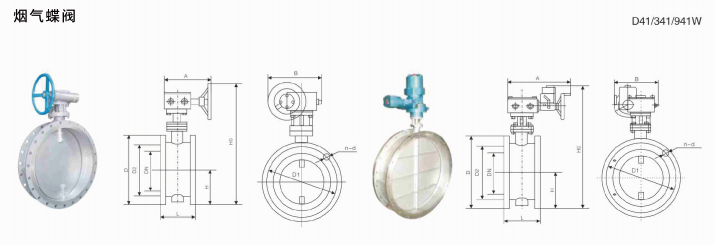

D41W-(0.5/2.5/6)bar Main connection size (unit: mm)
| Nominal path | Structural length | Dimensions (reference value) | Connection size (standard value) | |||||||||||
| 0 .05MPa and 0 .25MPa | 0.6MPa | |||||||||||||
| mm | inch | L | H | H0 | A | B | D | D1 | D2 | n-d | D | D1 | D2 | n-d |
| 50 | 2 | 108 | 70 | 215 | 270 | 65 | 140 | 110 | 88 | 4-14 | 140 | 110 | 88 | 4-14 |
| 65 | 21/2 | 112 | 80 | 235 | 270 | 65 | 160 | 130 | 108 | 4-14 | 160 | 130 | 108 | 4-14 |
| 80 | 3 | 114 | 95 | 263 | 270 | 65 | 190 | 150 | 124 | 4-18 | 190 | 150 | 124 | 4-18 |
| 100 | 4 | 127 | 105 | 283 | 270 | 65 | 210 | 170 | 144 | 4-18 | 210 | 170 | 144 | 4-18 |
| 125 | 5 | 140 | 120 | 313 | 310 | 65 | 240 | 200 | 174 | 8-18 | 240 | 200 | 174 | 8-18 |
| 150 | 6 | 140 | 132 | 338 | 310 | 65 | 265 | 225 | 199 | 8-18 | 265 | 225 | 199 | 8-18 |
Note: Product information is for reference only. If you have any questions, please contact our company!
