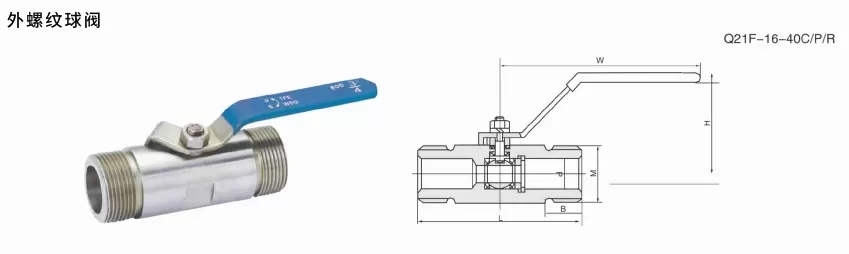

Main shape and connection dimensions (unit: mm)
| Nominal path DN |
PN1.6/2.5/4.0MPa, Class 150Lb/Class 300Lb | |||||
| L | d | M | B | H | W | |
| 8 | 85 | 8 | M20X1.5 | 15 | 38 | 110 |
| 10 | 85 | 8 | M24X1.5 | 16 | 40 | 110 |
| 15 | 85 | 10.5 | M30X2 | 18 | 42 | 110 |
| 20 | 90 | 13 | M36X2 | 18 | 62 | 110 |
| 25 | 100 | 17 | M42X2 | 20 | 68 | 110 |
| 32 | 120 | twenty two | M52X2 | 20 | 75 | 150 |
| 40 | 135 | 26 | M60X3 | 25 | 83 | 150 |
| 50 | 140 | 32 | M72X3 | 25 | 90 | 150 |
Note: Product information is for reference only. If you have any questions, please contact our company!
