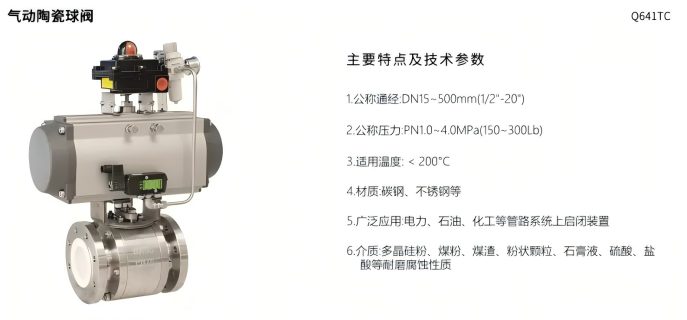

Main dimensions (unit: mm)
| Nominal pressure | Nominal diameter DN | Connection size | Sealing surface | Flange thickness C | ||||||
| Structural length L | Flange outer diameter D | Bolt hole center circle | Bolt hole diameter d | Slave | D1 | f | ||||
| worm n | Thread specifications | |||||||||
| PN1.0MPa (10bar) | 15 | 130 | 95 | 65 | 14 | 4 | M12 | 46 | 2 | 14 |
| 20 | 130 | 105 | 75 | 14 | 4 | M12 | 56 | 2 | 16 | |
| 25 | 140 | 115 | 85 | 14 | 4 | M12 | 65 | 2 | 16 | |
| 32 | 165 | 140 | 100 | 18 | 4 | M16 | 76 | 2 | 18 | |
| 40 | 165 | 150 | 110 | 18 | 4 | M16 | 84 | 2 | 18 | |
| 50 | 203 | 165 | 125 | 18 | 4 | M16 | 99 | 2 | 20 | |
| 65 | 222 | 185 | 145 | 18 | 4 | M16 | 118 | 2 | 20 | |
| 80 | 241 | 200 | 160 | 18 | 8 | M16 | 132 | 2 | 20 | |
| 100 | 305 | 220 | 180 | 18 | 8 | M16 | 156 | 2 | twenty two | |
| 125 | 356 | 250 | 210 | 18 | 8 | M20 | 184 | 2 | twenty two | |
| 150 | 394 | 285 | 240 | 18 | 8 | M20 | 211 | 2 | twenty four | |
| 200 | 457 | 340 | 295 | twenty two | 8 | M20 | 266 | 2 | twenty four | |
| 250 | 533 | 395 | 350 | twenty two | 12 | M20 | 319 | 2 | 26 | |
| PN1.6MPa(16bar) | 25 | 140 | 115 | 85 | 14 | 4 | M12 | 65 | 2 | 16 |
| 32 | 165 | 140 | 100 | 18 | 4 | M16 | 76 | 2 | 18 | |
| 40 | 165 | 150 | 110 | 18 | 4 | M16 | 84 | 2 | 18 | |
| 50 | 203 | 165 | 125 | 18 | 4 | M16 | 99 | 2 | 20 | |
| 65 | 222 | 185 | 145 | 18 | 4 | M16 | 118 | 2 | 20 | |
| 80 | 241 | 200 | 160 | 18 | 8 | M16 | 132 | 2 | 20 | |
| 100 | 305 | 220 | 180 | 18 | 8 | M16 | 156 | 2 | twenty two | |
| 125 | 356 | 250 | 210 | 18 | 8 | M16 | 184 | 2 | twenty two | |
| 150 | 394 | 285 | 240 | twenty two | 8 | M20 | 211 | 2 | twenty four | |
| 200 | 457 | 340 | 295 | twenty two | 8 | M20 | 266 | 2 | twenty four | |
| 250 | 533 | 405 | 350 | 26 | 12 | M24 | 319 | 2 | 26 | |
Note: Product information is for reference only. If you have any questions, please contact our company!
