Main technical parameters and performance parameters
| Technical parameters of LM series electric actuator | Valve Body Parameters | ||
| power supply | AC110, 220/380V/DC24, 220V | Nominal path | DN200-DN1600 |
| Output torque | 50N.M~2000N.M | Nominal pressure | PN1.0, 1.6MPa |
| Optional function | Switch type, passive electric shock type, opening signal, intelligent type | Valve shaft material | Carbon steel, 304/316/316L stainless steel, etc. |
| Action range | 0-90°±5° | Valve body material | Ductile iron, carbon steel, stainless steel, etc. |
| Action time | 9 seconds/15 seconds/30 seconds/60 seconds | Valve plate material | Ductile iron, cast steel, stainless steel, 1.4529, etc. |
| Ambient temperature | -30°~80° | Seat seal | EPDM, NBR, wear-resistant rubber, etc. |
| Manual operation | Included with handle operation | Structural form | Double eccentric, no pin type |
| Limit | Electrical and mechanical double limit | temperature | EPDM≤100℃, NBR≤80℃ |
| Protection level | IP-67 (Explosion-proof housing: Exd ll Bt4 Ip67 optional) | Applicable media | Air, gas, nitrogen, etc. |
| Input signal | Input signal 4-20mA, 1-5V, 0-10V; Output signal: 4-20mA, 1-5V, 0-10V |
Features | Wide use, low overall cost, large flow rate and small flow resistance |

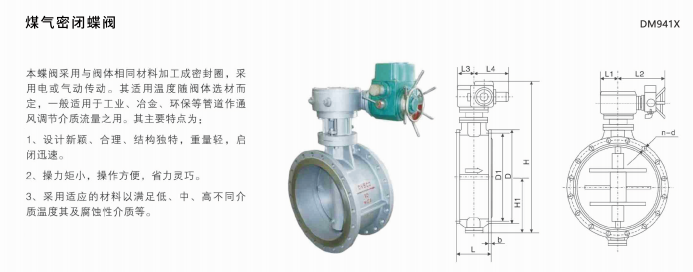

Main dimensions
| DN | D | D1 | n-do | b | L | H1 | SPD947X-1 | ||||
| H | L1 | L2 | L3 | L4 | |||||||
| 200 | 320 | 280 | 8-18 | twenty two | 152 | 180 | 547 | 170 | 220 | 180 | 270 |
| 250 | 375 | 335 | 12-18 | twenty four | 165 | 210 | 610 | 170 | 220 | 180 | 270 |
| 300 | 440 | 395 | 12-22 | twenty four | 178 | 242 | 660 | 170 | 220 | 180 | 270 |
| 350 | 490 | 445 | 12-22 | twenty four | 190 | 267 | 720 | 170 | 220 | 180 | 270 |
| 400 | 540 | 495 | 16-22 | twenty four | 216 | 295 | 790 | 170 | 220 | 180 | 270 |
| 450 | 595 | 550 | 16-22 | twenty four | 222 | 320 | 1040 | 210 | 220 | 180 | 270 |
| 500 | 645 | 600 | 20-22 | 26 | 229 | 346 | 1100 | 210 | 520 | 220 | 390 |
| 600 | 755 | 705 | 20-26 | 26 | 267 | 403 | 1250 | 210 | 520 | 220 | 390 |
| 700 | 860 | 810 | 24-26 | 26 | 292 | 540 | 1370 | 210 | 520 | 220 | 390 |
| 800 | 975 | 920 | 24-30 | 26 | 318 | 567 | 1500 | 210 | 520 | 220 | 390 |
| 900 | 1075 | 1020 | 24-30 | 26 | 330 | 596 | 1700 | 210 | 520 | 220 | 390 |
| 1000 | 1075 | 1120 | 28-30 | 26 | 410 | 646 | 1930 | 260 | 590 | 250 | 420 |
| 1200 | 1375 | 1320 | 32-30 | 26 | 470 | 765 | 2080 | 260 | 590 | 250 | 420 |
| 1400 | 1575 | 1520 | 36-30 | 26 | 530 | 880 | 2330 | 260 | 590 | 250 | 420 |
| 1600 | 1790 | 1730 | 40-30 | 26 | 600 | 986 | 2610 | 260 | 590 | 250 | 420 |
Note: Product information is for reference only. If you have any questions, please contact our company!
