Product execution standards
| Design and manufacturing | Structural length | Pressure-temperature level | Test-Inspection | |||||||||||
| E101 NB/T47044 DL.T531 |
E101 JB2766 GB/T 12221 |
E101 NB/T47044 |
E101 GB/T26480 |
|||||||||||
Product Performance Specifications
| Product model | Nominal pressure PN(MPa) | Test pressure (MPa) | Working pressure (MPa) | Working temperature (℃) | Applicable media | |||||||||
| Strength test | Sealing test/upper seal test | |||||||||||||
| Z960Y-250 | 25 | 37.5 | 27.5 | one | ≤425 | Water, steam | ||||||||
| Z960Y-320 | 32 | 48.0 | 36.0 | one | ≤425 | |||||||||
| Z960Y-P54/100V | one | 30.0 | 22.0 | 10 | ≤540 | steam | ||||||||
| Z960Y-P54/170V | one | 48.0 | 36.0 | 17 | ≤540 | |||||||||

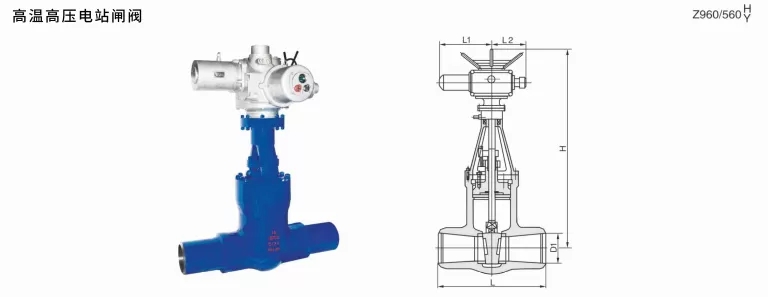

Main shape and connection size
| Nominal path DN |
Main dimensions and connection dimensions (mm) | Electrical device | ||||||||||||
| D1 | L | H | L1 | L2 | ||||||||||
| Z960Y-250 | ||||||||||||||
| 100 | 84 | 406 | 1164 | 437 | 277 | DZW45 | ||||||||
| 125 | 100 | 483 | 1402 | 437 | 277 | DZW60 | ||||||||
| 175 | 158 | 711 | 1650 | 554 | 309 | DZW180 | ||||||||
| 225 | 200 | 864 | 1650 | 554 | 309 | DZW180 | ||||||||
| 300 | 280 | 1067 | 2106 | 764 | 398 | DZW350 | ||||||||
| Z960Y-320 | ||||||||||||||
| 100 | 96 | 533 | 1226 | 437 | 277 | DZW60 | ||||||||
| 125 | 118 | 610 | 1302 | 437 | 277 | DZW60 | ||||||||
| 150 | 148 | 762 | 1403 | 526 | 283 | DZW90 | ||||||||
| 175 | 148 | 762 | 1650 | 554 | 309 | DZW180 | ||||||||
| 225 | 222 | 1041 | 1650 | 554 | 309 | DZW180 | ||||||||
| Z960Y-P54/100V | ||||||||||||||
| 175 | 148 | 762 | 1650 | 554 | 309 | DZW180 | ||||||||
| 225 | 222 | 1041 | 1650 | 554 | 309 | DZW180 | ||||||||
| 250 | 222 | 1041 | 1795 | 554 | 309 | DZW180 | ||||||||
| 300 | 294 | 1245 | 2080 | 554 | 309 | DZW250 | ||||||||
| Z960Y-P54/170V | ||||||||||||||
| 125 | 98 | 630 | 1230 | 437 | 227 | DZW60 | ||||||||
| 225 | 186 | 1060 | 1680 | 554 | 309 | DZW180 | ||||||||
| 300 | 278 | 1397 | 2265 | 764 | DZW500 | |||||||||
| 325 | 310 | 1448 | 2265 | 690 | 398 | DZW500 | ||||||||
| 350 | 338 | 1550 | 2536 | 715 | DZWC-4 | |||||||||
Note: Product information is for reference only. If you have any questions, please contact our company!
