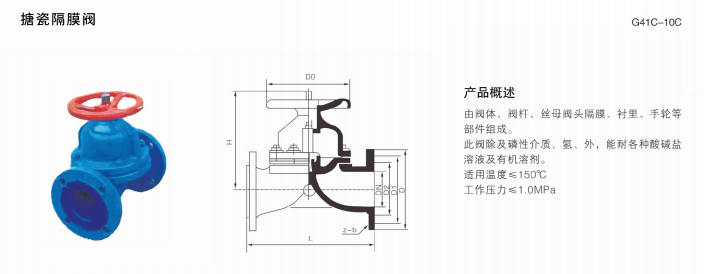

Main connection size (unit: mm)
| Nominal diameter DN | L | D | D1 | D2 | H | b1 | D0 | Number of holes Z | Aperture b |
| 25 | 145 | 115 | 85 | 65 | 121 | 16 | 120 | 4 | 14 |
| 32 | 160 | 135 | 100 | 75 | 130 | 16 | 125 | 4 | 14 |
| 40 | 180 | 145 | 110 | 85 | 165 | 18 | 140 | 4 | 18 |
| 50 | 210 | 160 | 125 | 100 | 230 | 20 | 160 | 4 | 18 |
| 65 | 250 | 180 | 145 | 120 | 240 | 20 | 200 | 4 | 18 |
| 80 | 300 | 195 | 160 | 135 | 256 | twenty two | 200 | 4 | 18 |
| 100 | 350 | 215 | 180 | 155 | 285 | twenty two | 240 | 8 | 18 |
| 125 | 400 | 240 | 210 | 185 | 320 | twenty three | 280 | 8 | 18 |
| 150 | 460 | 280 | 240 | 210 | 464 | twenty four | 320 | 8 | twenty three |
Note: Product information is for reference only. If you have any questions, please contact our company!
