Main technical parameters
| Valve body | Cast aluminum/cast iron/stainless steel | Product Name | GJ841X-6L pneumatic pipe clamp valve |
| Diameter specifications | DN50-300 | Nominal path | DN40-300mm |
| Control medium | Compressed gas | Valve body material | Aluminum alloy, carbon steel, stainless steel |
| Work pressure | Minimum closure pressure 0.15Mpa | Scope of application | Dust, etc. |
| Control pressure | 0.6Mpa | Product Model | GJ841X-6L |
| Normal working pressure difference | 0.2-0.3 Mpa | Pressure range | 0.6MPa |
| Use temperature | ≤120℃ | Surface treatment | polishing |
| Acid and alkali resistance | ≤10% concentration |

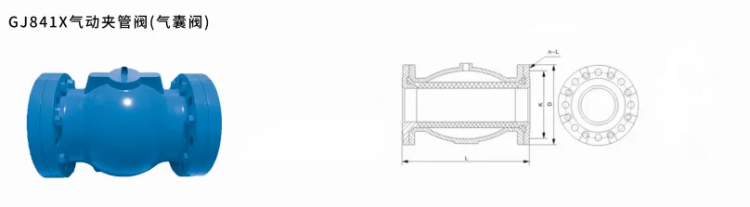

GJ841X Pneumatic Plug Pipe Valve (Airbag Valve)
| caliber | L | N | D | K | n-L |
| DN40 | 150 | 40 | 145 | 110 | 4-18 |
| DN50 | 180 | 60 | 160 | 125 | 4-18 |
| DN65 | 180 | 60 | 180 | 145 | 4-18 |
| DN80 | 220 | 75 | 195 | 160 | 4-18 |
| DN100 | 280 | 95 | 215 | 180 | 8-18 |
| DN125 | 345 | 120 | 245 | 210 | 8-18 |
| DN150 | 414 | 145 | 280 | 240 | 8-23 |
| DN200 | 550 | 182 | 335 | 295 | 8-23 |
| DN250 | 680 | 229 | 390 | 350 | 12-23 |
| DN300 | 820 | 278 | 440 | 400 | 12-23 |
Note: Product information is for reference only. If you have any questions, please contact our company!
